CBN Grinding Wheel for Alloy Steel

CBN Grinding Wheel for Alloy Steel – Precision Tool for High-Performance Grinding

When you're grinding alloy steel, tool steel, or heat-resistant materials, you need a wheel that stays sharp and performs consistently. Our CBN Grinding Wheel for Alloy Steel delivers exactly that. With extremely high hardness and shape retention that changes very slowly over time, this wheel is engineered for automated high-precision grinding operations. You'll benefit from infrequent replacement cycles, which translates to less labor time and reduced operational costs. The long-lasting cutting sharpness keeps grinding temperatures low, preventing workpiece burning and extending tool life significantly. Available in resin, vitrified, and metal bond types, our grinding wheels are ideal for processing tool steel, mold steel, stainless steel, heat-resistant alloys, and high-vanadium HSS with satisfactory grinding outcomes every time.

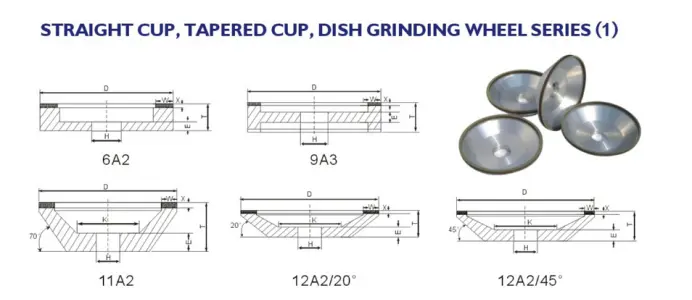

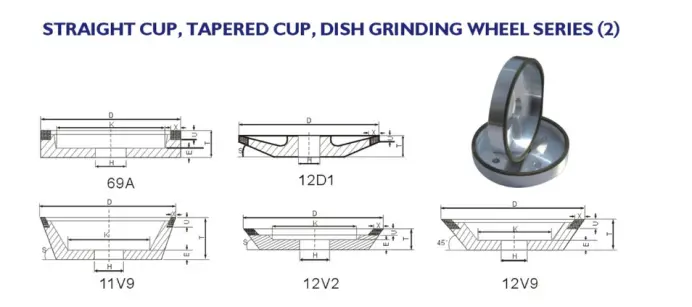

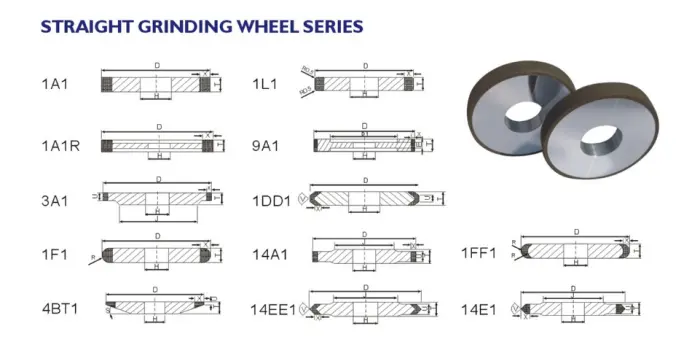

Technical Specifications

Why Choose Our CBN Grinding Wheels?

Built for Tough Materials

Combination steel requests a crushing arrangement that won't stopped midway through the work. Our wheels keep up their cutting capacity indeed beneath persistent heavy-duty operations. You won't involvement the dissatisfaction of visit wheel changes or declining execution mid-shift.

Lower Operating Costs

Because the wheel wears gradually and holds its shape, you'll spend less on substitutions. Less wheel changes cruel your administrators remain beneficial. The crushing temperature remains moo, securing your workpieces from warm harm and decreasing scrap rates.

Versatile Bond Options

Choose the bond sort that matches your particular application:

• Resin bond – Offers excellent surface finish and cooler grinding action
• Vitrified bond – Provides superior shape retention and consistent performance
• Metal bond – Delivers maximum wheel life for high-volume production

Precision You Can Trust

Shape and dimension changes happen very slowly with CBN abrasives. This stability makes our product ideal for automated grinding systems where dimensional accuracy matters. Your batch-to-batch consistency improves dramatically.

Applications That Benefit Most

Tool and Die Manufacturing

Grinding hardened tool steel and mold components requires consistent performance. Our wheels deliver the surface quality and dimensional accuracy your quality control demands.

Aerospace Component Grinding

Heat-resistant alloys and titanium alloys need specialized grinding solutions. The low grinding temperature prevents metallurgical damage to these sensitive materials.

Bearing and Automotive Parts

High-volume production environments benefit from extended wheel life and reduced downtime. Your throughput increases while per-part costs decrease.

General Metalworking

From small job shops to large manufacturing facilities, our CBN Grinding Wheel for Alloy Steel adapts to various grinding operations and machine types.

How to Get the Best Performance?

Match the Wheel to Your Process

Distinctive crushing operations require diverse determinations. Outside round and hollow crushing, inside pounding, and surface pounding each have ideal wheel setups. Share your particular application points of interest with us for the best recommendation.

Use Appropriate Coolant

Coolant determination essentially impacts wheel execution and workpiece quality. Water-based coolants work well with most CBN wheels, but dodge profoundly antacid arrangements that can influence bond integrity.

Maintain Normal Dressing

Even in spite of the fact that CBN wheels keep up sharpness longer than routine abrasives, intermittent dressing keeps them performing at their best. A sharp wheel grinds cooler and more efficiently.

Optimize Your Parameters

Cutting profundity, bolster rate, and wheel speed all influence comes about. Begin with preservationist parameters and alter based on your particular fabric hardness and surface wrap up prerequisites.

Application

​​​​​​​Feature

1.Resin bond CBN grinding wheels: simple forming, difficult to dress.

2.Vitrified bond CBN grinding wheels: strong grinding ability, dressable.

3.Metal bond CBN grinding wheels: high hardness, high density.

FAQ

Q: How do I select the right precious stone or CBN pounding wheel for my application?

Q: Does my current gear and prepare moreover influence wheel selection?

A: Completely. Giving subtle elements around your pounding machine brand, demonstrate, most extreme shaft speed, pounding strategy (outside, inner, surface, or centerless), whether you utilize coolant, and your profundity of cut per pass makes a difference our engineers coordinate the most reasonable wheel to your setup.

Q: Why does my pounding wheel feel like it "won't cut" and has exceptionally moo efficiency?

A: This common issue frequently stems from off-base rough sort (utilizing jewel on ferrous metals causes chemical responses), inaccurate wheel hardness (as well difficult won't discharge gloomy grains), disgraceful bolster rate, wheel stacking with metal chips, or inadequately coolant stream. We can offer assistance analyze and resolve these issues.

Q: My wheel is clogged and dull – what should I do? How do I dress it?

A: Although superabrasive wheels have some self-sharpening ability, they still need periodic dressing. Use a diamond dressing tool to remove the dulled abrasive layer and restore geometry. For single-point diamond dressers, mount at 10–15° angle and dress wet with coolant.

Q: Why are my workpiece dimensions or accuracy inconsistent during batch grinding?

A: Poor dimensional stability links to wheel wear characteristics and dressing frequency. If the wheel wears too fast or unevenly, feed accuracy suffers. Setting a regular dressing schedule and using wheels with good shape retention significantly extends stable dimensional performance periods.

Contact Us for Your Custom Solution

Ready to improve your grinding operations with CBN Grinding Wheel for Alloy Steel? Reach out to our technical team at elena@mine-tools.com for personalized recommendations and quotations.
