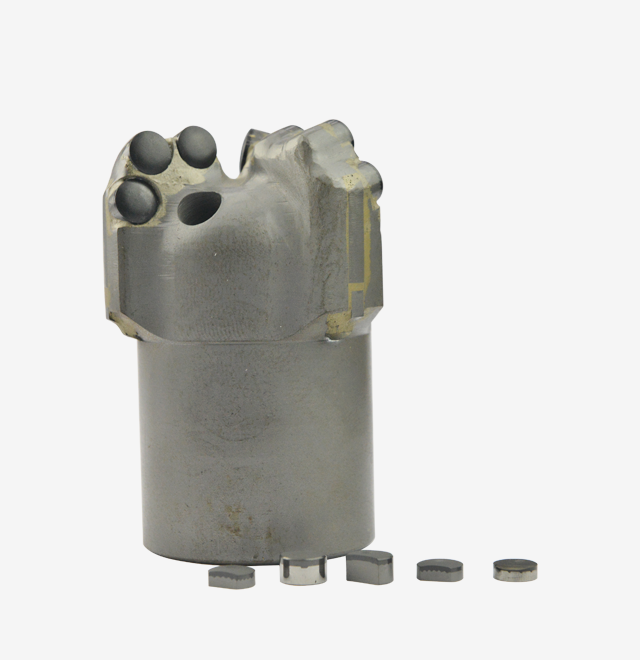

PDC Arc Angle Bits

1.Core Advantage: Arc-angle design delivers outstanding drilling efficiency, durability, low cost, and safety.
2.Layered Cutting: Multi-track layered cutting reduces drilling resistance and eliminates re_x001e_crushing of rock.
3.Asymmetric Blades: Together with staggered cutter arrangement, they improve rock breaking and shorten project time.
4.Wide Application: Coal mining, oil drilling, geological exploration, hydropower, railways, highways, and tunneling.
5.Dynamic Flow Field: Prevents borehole shrinkage, ensures effective cuttings removal, and cools the bit rapidly – extends service life.
6.Damage Reduction: Arc-angle structure performs well in fractured formations and rock fractures, reducing unexpected bit damage.

Product Description

PDC Arc Angle Bits: High-Performance Drilling Solutions for Demanding Applications

When your drilling project demands exceptional efficiency and durability, PDC Arc Angle Bits from Henan Me We Products Co., Ltd. deliver proven results. With over 10 years of specialized manufacturing experience, our arc-angle design combines multi-track layered cutting technology with asymmetric blade configuration to reduce drilling resistance by up to 60% compared to traditional tungsten carbide bits. Each bit undergoes strict ISO 9001 quality control and features a dynamic flow field system that extends service life 10 to 30 times longer than conventional alternatives. Available in custom configurations with 7–10 day standard lead times, our products are engineered for complex geological conditions across coal mining, oil drilling, and geological exploration projects worldwide.

Technical Specifications

Hardness Category

Soft

Medium

Medium hard

Hard

Super hard

Drillability Grade

Protodyakonov Hardness

F≤10

10＜F≤15

15＜F≤20

Rock

sandstone, limestone, marble, dolomite, pyrite, shale

granite, hard sandstone, conglomerate, limestone, quartz vein

hard granite, quartzite, basalt, igneous rock

PDC Arc Bit

Standard

√

Premium

√

Ultra Premium

√

What Makes Arc Angle Design Superior?

The arc-angle structure speaks to a noteworthy progression in penetrating innovation. Not at all like conventional flat-face plans, the bended cutting profile makes a dynamic shearing activity that breaks shake more efficiently.

This plan decreases the vitality required per meter penetrated. Your fix can keep up steady infiltration rates indeed in variable formations.

The layered cutting approach avoids shake re-crushing. This implies less squandered vitality and quicker boring cycles.

Asymmetric edges work with amazed cutter arrangement to disseminate cutting powers equitably. You'll encounter smoother operation and decreased vibration.

The energetic stream field plan serves numerous purposes. It avoids borehole shrinkage, evacuates cuttings viably, and gives quick cooling to the cutting surface.

Where Our Arc Angle Bits Excel?

Our items serve different businesses with demonstrated reliability:

Coal Mining Operations: Handle broken arrangements and startling shake layers with decreased downtime.

Oil Boring Ventures: Keep up reliable entrance rates through changing geographical conditions.

Geological Investigation: Accomplish exact boreholes whereas collecting quality center samples.

Hydraulic and Hydropower: Penetrate productively in water-saturated arrangements with prevalent cuttings removal.

Railways and Thruways: Total foundation boring ventures quicker with expanded bit life.

Tunneling Applications: Decrease startling bit harm in complex underground conditions.

Key Performance Advantages

Extended Service Life: The arc-angle structure handles rock fractures and complex formations better than flat designs. This reduces unexpected damage and costly bit replacements.

Superior Cuttings Removal: The flow field design ensures debris doesn't accumulate around the cutting face. Your bit stays cooler and cuts more efficiently throughout each drilling cycle.

Reduced Operating Costs: When a bit lasts 10 to 30 times longer, you spend less on replacements, rig downtime, and labor for bit changes.

No Resharpening Required: Unlike tungsten carbide bits, PDC Arc Angle Bits maintain their cutting edge without manual conditioning. This saves valuable rig time.

Formation Adaptability: Our engineering team analyzes rock hardness, brittleness, fracture distribution, and clay content to recommend the optimal bit configuration for your specific geology.

Choosing the Right Bit for Your Project

Each boring venture presents interesting challenges. We customize our proposals based on your particular requirements.

Consider your shake arrangement characteristics to begin with. Hardness, brittleness, and break designs all impact bit performance.

Your fix determinations matter as well. Rotational speed, torque capacity, and pump yield decide which bit setup will perform best.

Application situation influences plan choices. Roof blasting requires distinctive highlights than profound geographical exploration.

We give free specialized interview to coordinate the right bit to your needs. Essentially give arrangement information, borehole determinations, fix parameters, and application points of interest.

Maintaining Peak Performance

Proper maintenance extends the already impressive service life of your arc angle bits.

Clean the bit body thoroughly after each operation. Remove all drilling mud and cuttings.

Inspect for matrix detachment or steel body cracks. Early detection prevents field failures.

Check PDC cutter wear regularly. When gauge protection strips show 2/3 wear, plan for replacement or refurbishment.

Replace PDC cutters when less than 1/5 of the original volume remains. Continuing beyond this point reduces efficiency and risks damage to your drill string.

Monitor your drilling parameters continuously. Adjust weight on bit and rotational speed based on penetration feedback and formation response.

FAQ

Q: What information should I provide before purchasing to ensure I choose the right PDC bit for my needs?

A: To help our team recommend the most suitable PDC bit, please provide:

① Hardness coefficient (F-value or drillability grade) or lithology of the target rock formation;

② Expected borehole diameter and depth;

③ Drill rig model and key operating parameters (rotational speed, torque, pump output);

④ Application scenario (e.g., roof bolting, gas drainage, geological exploration);

⑤ Any special requirements (e.g., complex formations, fractured zones, hard interlayers).

Our technical team will offer professional selection advice and free technical support.

Q: What advantages do PDC bits have over tungsten carbide bits?

A: Under identical rock conditions, our two-wing arc angle design delivers 10 to 30 times longer service life than tungsten carbide bits, with at least 60% higher drilling efficiency. PDC bits require no resharpening, significantly reducing labor intensity and saving rig time.

Q: What maintenance should be performed after each drilling operation?

A: Clean the bit body promptly after each operation. Check for matrix detachment or steel body cracking. Inspect PDC cutter wear. Replace the bit when gauge protection strips show more than 2/3 wear. Replace PDC cutters when less than 1/5 of the original volume remains.

Q: Drilling speed is unsatisfactory. How can I optimize drilling parameters?

A: For soft to medium-hard formations, increase weight on bit and rotational speed. For hard rock, use lower rotational speed with moderate weight and sufficient pump output. Adjust parameters based on penetration feedback. If you encounter abnormal vibration or sudden drops in rate of penetration, pull the bit for inspection.

Q: How can I tell the difference between normal wear and abnormal damage?

A: Normal wear shows uniform consumption of the diamond layer with dulling but not chipping. This can be addressed by manual conditioning or cutter replacement. Abnormal damage includes premature diamond layer separation, overall fracture, or weld failure—often caused by sudden formation changes or improper handling. Select bits matching your rig performance and maintain stable operating parameters.
