Superabrasive Grinding Wheel

Superabrasive Grinding Wheel - Precision Resin Bond Solutions

When precision matters in your workshop, choosing the right Superabrasive Grinding Wheel makes all the difference. At Henan Me We Products Co., Ltd., we specialize in manufacturing resin bond grinding wheels designed for superior performance across demanding applications. With over 10 years of manufacturing expertise, our wheels deliver excellent cutting action, high impact resistance, and remarkable versatility. Whether you're working on tool grinding, mold finishing, or precision measurement equipment, our products combine flexibility with cost-effectiveness—offering you reliable results without breaking your budget.

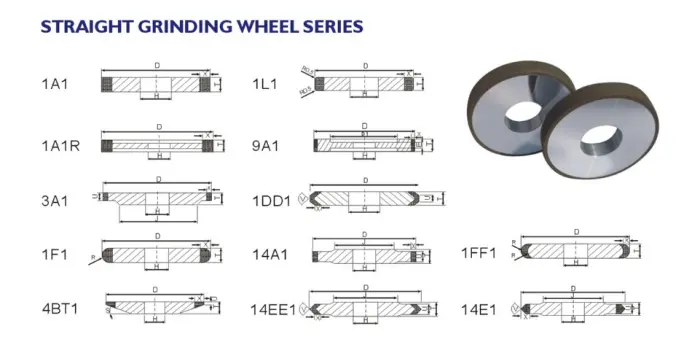

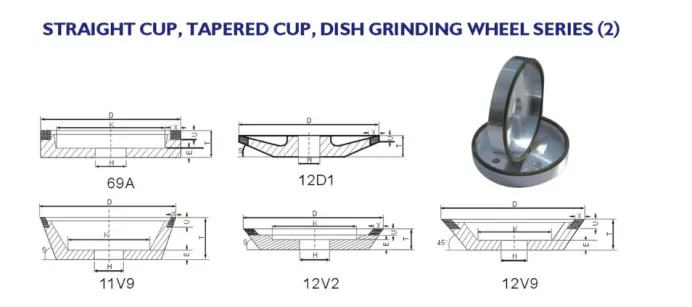

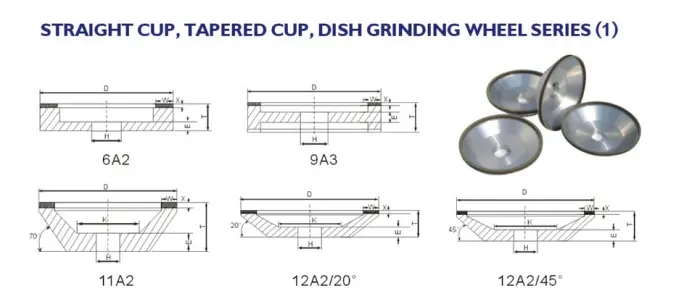

Technical Specifications

What Makes Our Resin Bond Wheels Different?

Our product line stands out because we've engineered each wheel for real-world challenges. You get outstanding toughness that absorbs shock during aggressive cuts. The resin bond matrix provides just enough give to prevent workpiece damage while maintaining consistent material removal.

Key Performance Benefits:

• Exceptional Cutting Efficiency – Removes material quickly during both rough and finish grinding operations
• Easy Dressing Capability – Adapts readily to complex tool geometries and custom profiles
• Superior Polishing Performance – Achieves mirror-like surface finishes when you need them most
• High Impact Resistance – Handles interrupted cuts without premature breakdown
• Cost-Effective Solution – Delivers professional results at a fraction of vitrified bond pricing

You'll find these wheels particularly effective when working with tools, measuring instruments, molds, and cutting implements that demand both precision and surface quality.

Where These Wheels Excel?

Our resin bond Superabrasive Grinding Wheel products serve a wide range of precision grinding tasks:

Device Fabricating & Regrinding

Perfect for resharpening cutting apparatuses, reamers, drills, and conclusion plants where edge quality matters.

Mold & Pass on Work

Handles the perplexing forms and fine wraps up required in shape depth wrapping up and pass on surface preparation.

Measuring Instrument Production

Achieves the dimensional precision and surface judgment required for gages, calipers, and assessment equipment.

General Accuracy Grinding

Ideal for any application requiring adjusted execution between fabric evacuation and surface quality.

Understanding the Trade-offs

While tar bond wheels offer colossal flexibility, they do have operational considerations:

Temperature Affectability – The natural bond mellows beneath maintained tall warm. Utilize satisfactory coolant and dodge intemperate profundities of cut to keep up wheel integrity.

Loading Potential – Delicate or gummy materials may fill the wheel's pores. Normal dressing keeps your wheel cutting cleanly.

Service Life Length – Compared to vitrified bonds, gum wheels may require more visit substitution in greatly high-volume generation. Be that as it may, their lower fetched frequently makes this a beneficial trade-off.

Application

Rough and finish grinding of tools, measuring tools, molds, and cutting tools.

Feature

1.Good toughness and high impact resistance.
2.Excellent cutting performance, suitable for rough and finish grinding of molds and measuring tools.
3.Easy to dress, meeting the requirements for processing complex shapes.
4.Good polishing effect, ideal for applications requiring a high surface finish.
5.Lower cost (compared to vitrified bonds), offering high cost-effectiveness.

Limitation

1.Poor high-temperature resistance, prone to softening as temperature rises.
2.Low thermal stability; long-term use may lead to aging, affecting service life.
3.Prone to clogging, which may impact grinding efficiency.

FAQ

Q: How do I choose the right diamond or CBN grinding wheel for my application?

A: To help you select the right wheel and avoid inefficient grinding or unnecessary costs caused by mismatched parameters, please provide these key details:

• Workpiece material – Are you grinding cemented carbide, high-speed steel, hardened steel, titanium alloy, or another material?
• Workpiece dimensions – Diameter, length, wall thickness, and grinding stock allowance
• Material hardness – For example, HRC 45 or HRC 60
• Processing requirements – Roughing or finishing? Required surface roughness? Tolerance specifications?

Based on your inputs, we'll recommend the optimal abrasive type, bond, grit size, concentration, and dimensions.

Q: Does my current equipment and process also affect wheel selection?

A: Absolutely. Sharing these details helps our engineers match the perfect wheel:

• Grinding machine – Brand, model, maximum spindle speed
• Grinding method – External, internal, surface, centerless, or tool grinding? Dry or wet operation?
• Process parameters – Depth of cut per pass and feed rate
• Current challenges – Low efficiency? Frequent clogging? Workpiece burning? Short wheel life?
• Wheel interface – Shape, mounting dimensions, arbor hole diameter

Q: Why does my grinding wheel feel like it "won't cut" and has very low efficiency?

A: Several factors can cause this frustrating problem:

• Wrong abrasive type – Using diamond on ferrous metals causes rapid dulling
• Incorrect wheel hardness – Too hard prevents grain release
• Improper feed rate – Too light or too heavy affects cutting action
• Wheel loading – Metal chips clog the abrasive layer
• Coolant issues – Insufficient flow or wrong coolant type

We can help diagnose your specific situation and recommend the right solution, whether that means switching abrasive types or adjusting wheel specifications.

Q: My wheel is clogged and dull – what should I do? How do I dress it?

A: Although our products have some self-sharpening ability, periodic dressing restores optimal performance:

Truing/Shaping – Use a diamond dressing tool to remove the dulled layer and restore geometry

Sharpening/Conditioning – Mount a single-point dresser at 10–15° and dress with coolant flowing

Regular dressing extends wheel life and maintains consistent results.

Q: Why are my workpiece dimensions or accuracy inconsistent during batch grinding?

A: Dimensional instability usually traces back to:

• Wheel wear patterns – Fast or uneven wear affects feed accuracy
• Insufficient dressing frequency – A dull wheel shifts the grinding contact point

Setting a regular dressing schedule and using wheels with good shape retention solves most consistency issues.

Ready to Improve Your Grinding Results?

We're here to help you find the perfect grinding solution for your specific application with Superabrasive Grinding Wheel. Reach out to our team at elena@mine-tools.com and let's discuss your needs.
